Home / Products / CN01GF 1 kW Open Frame Gasoline Generator Set

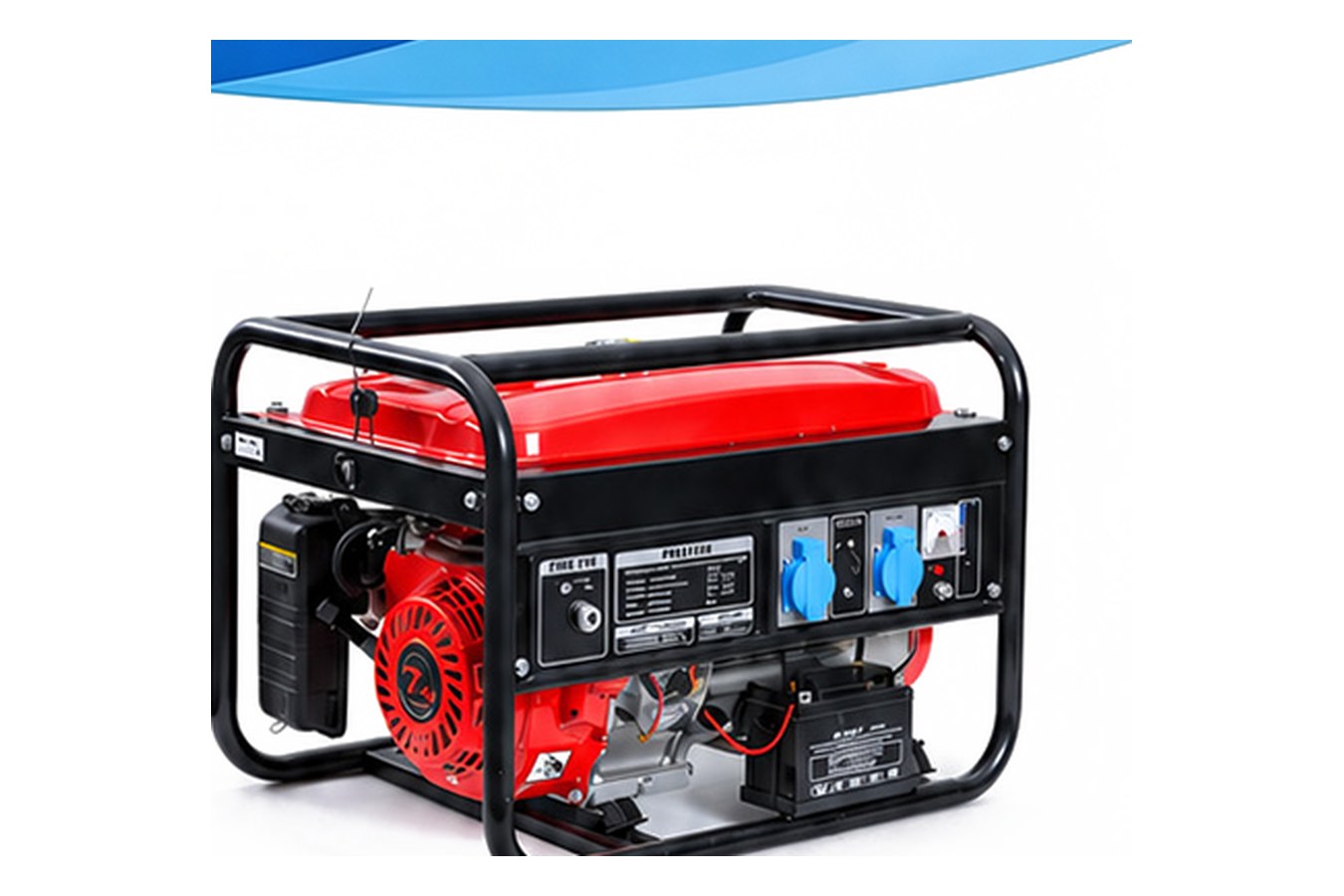

CN01GF 1 kW Open Frame Gasoline Generator Set

Model CN01GF: 1 kW (1.2 kVA estimated) open frame gasoline generator set with a 154F air-cooled engine, 12 L fuel tank giving about 10-12 h of continuous running, noise 50-65 dB(A) at 7 metres, net weight 25 kg.

Rated Output 1 kW / ≈ 1.2 kVA

Engine Model 154F

Noise Level 50-65 dB(A)

Continuous Running 10-12 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 154F petrol engine, 7 hp / 3000 rpm
Noise level 50-65 dB(A) at 7 metres
12 L fuel tank, about 10-12 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN01GF
Rated Output Power	1
Max Output Power	1.1
Apparent Power (estimated, cosφ=0.8)	1.2
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	0.8
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	50-65 dB(A)
Fuel Tank Capacity	12 L
Continuous Working Time	10-12 h
Engine Model	154F
Displacement	220 cc
Bore × Stroke	—
Fuel Consumption Rate	395 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	1 L
Dimension (L×W×H)	490 × 380 × 350 mm
Net Weight	25 kg
20FT Loading	—
40HQ Loading	—
