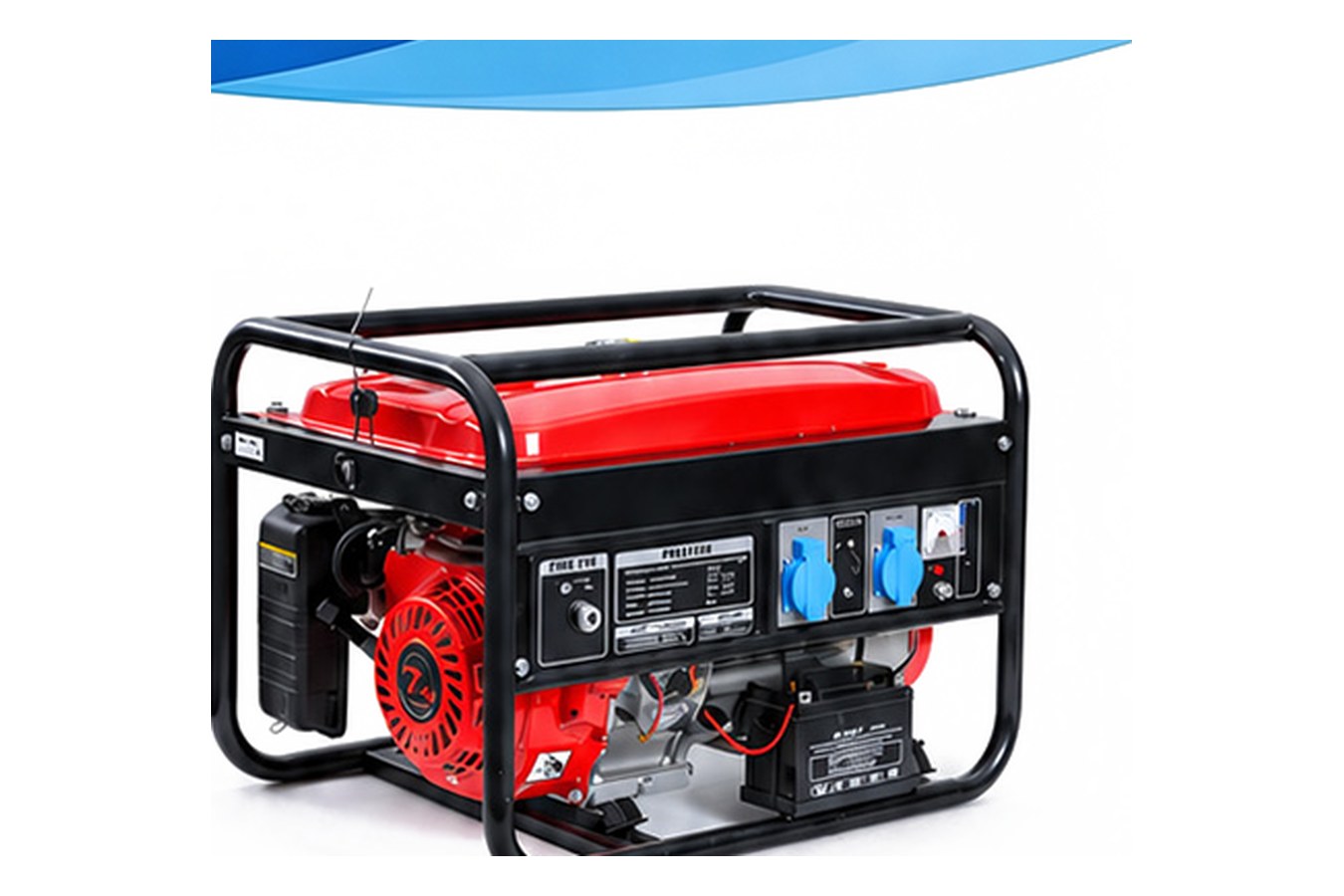

CN04GF 3 kW Open Frame Gasoline Generator Set

Model CN04GF: 3 kW (3.8 kVA estimated) open frame gasoline generator set with a 170F air-cooled engine, 12 L fuel tank giving about 10-12 h of continuous running, noise 50-65 dB(A) at 7 metres, net weight 39 kg.

Rated Output 3 kW / ≈ 3.8 kVA

Engine Model 170F

Noise Level 50-65 dB(A)

Continuous Running 10-12 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 170F petrol engine, 7 hp / 3000 rpm
Noise level 50-65 dB(A) at 7 metres
12 L fuel tank, about 10-12 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN04GF
Rated Output Power	3
Max Output Power	3.5
Apparent Power (estimated, cosφ=0.8)	3.8
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	0.8
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	50-65 dB(A)
Fuel Tank Capacity	12 L
Continuous Working Time	10-12 h
Engine Model	170F
Displacement	220 cc
Bore × Stroke	—
Fuel Consumption Rate	395 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	1 L
Dimension (L×W×H)	590 × 430 × 440 mm
Net Weight	39 kg
20FT Loading	240 pcs
40HQ Loading	590 pcs
