Home / Products / CN06GF 5 kW Silent Gasoline Generator Set

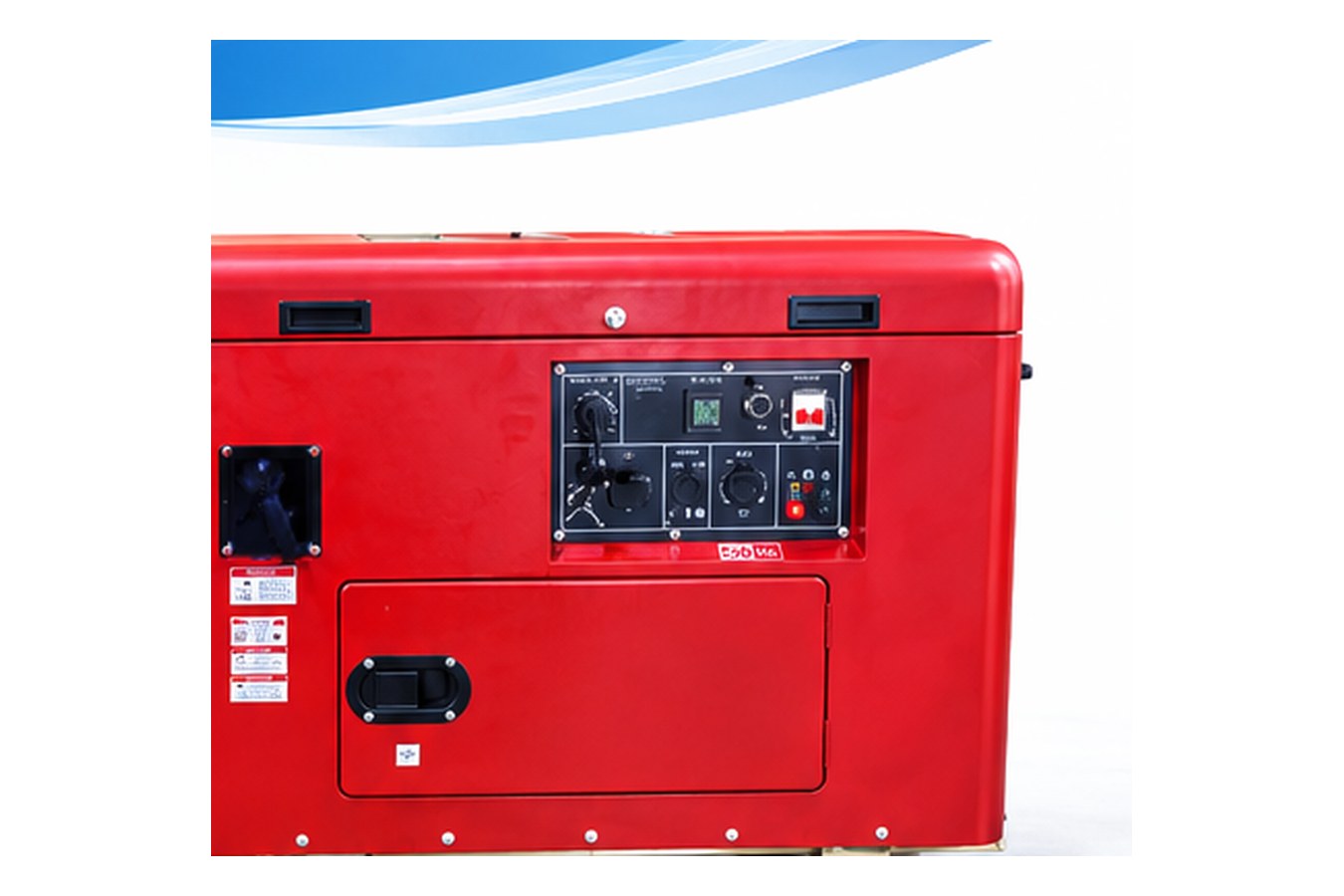

CN06GF 5 kW Silent Gasoline Generator Set

Model CN06GF: 5 kW (6.2 kVA estimated) silent gasoline generator set with a 188F air-cooled engine, 15 L fuel tank giving about 10-12 h of continuous running, noise 70-75 dB(A) at 7 metres, net weight 140 kg.

Rated Output 5 kW / ≈ 6.2 kVA

Engine Model 188F

Noise Level 70-75 dB(A)

Continuous Running 10-12 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 188F petrol engine, 15 hp / 3000 rpm
Noise level 70-75 dB(A) at 7 metres
15 L fuel tank, about 10-12 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN06GF
Rated Output Power	5
Max Output Power	5.5
Apparent Power (estimated, cosφ=0.8)	6.2
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	0.8
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	70-75 dB(A)
Fuel Tank Capacity	15 L
Continuous Working Time	10-12 h
Engine Model	188F
Displacement	420 cc
Bore × Stroke	—
Fuel Consumption Rate	395 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	1 L
Dimension (L×W×H)	930 × 530 × 790 mm
Net Weight	140 kg
20FT Loading	72 pcs
40HQ Loading	144 pcs
