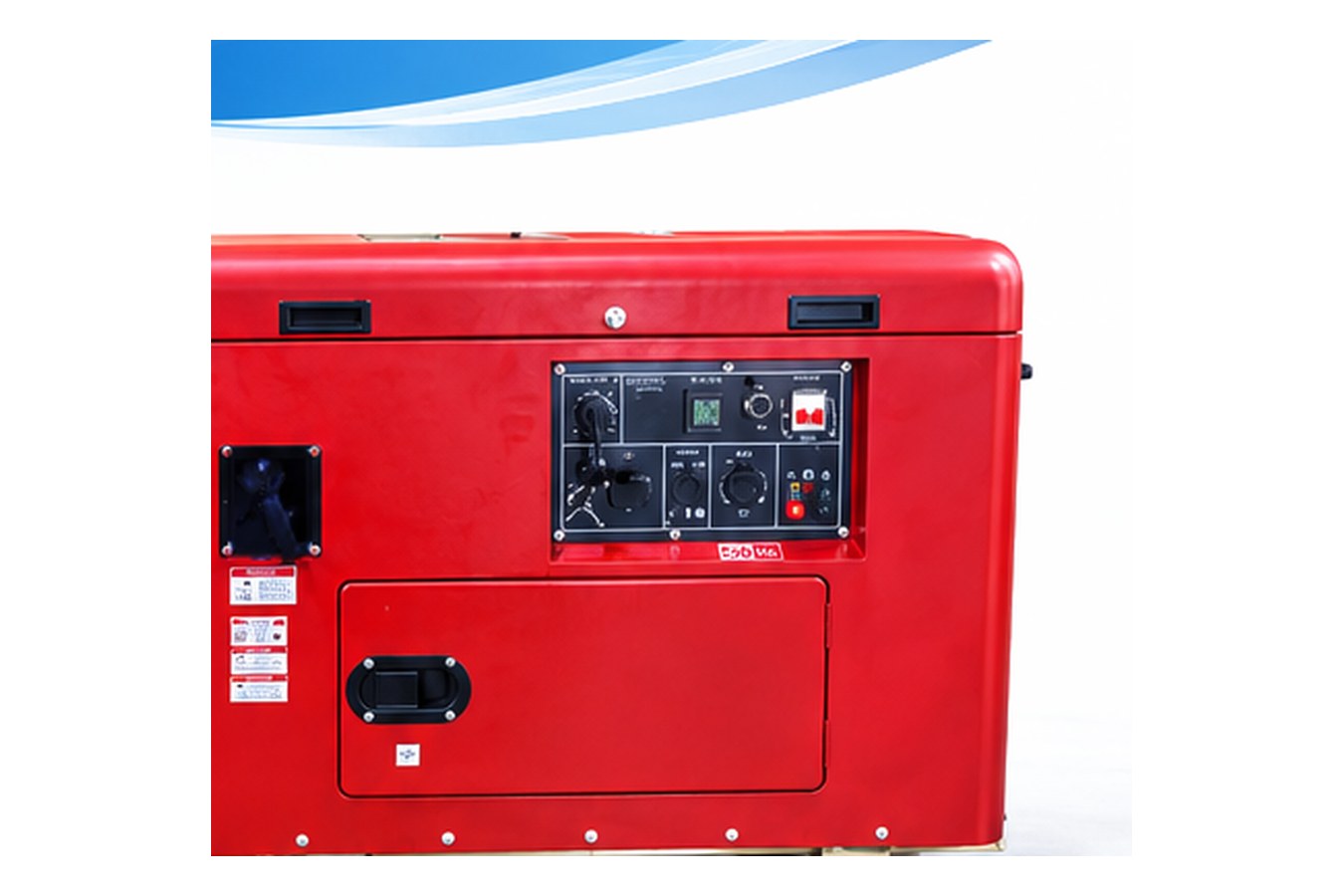

CN08GF 7.5 kW Silent Gasoline Generator Set

Model CN08GF: 7.5 kW (9.4 kVA estimated) silent gasoline generator set with a 190F air-cooled engine, 15 L fuel tank giving about 10-12 h of continuous running, noise 65-70 dB(A) at 7 metres, net weight 150 kg.

Rated Output 7.5 kW / ≈ 9.4 kVA

Engine Model 190F

Noise Level 65-70 dB(A)

Continuous Running 10-12 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 190F petrol engine, 16 hp / 3000 rpm
Noise level 65-70 dB(A) at 7 metres
15 L fuel tank, about 10-12 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN08GF
Rated Output Power	7.5
Max Output Power	8
Apparent Power (estimated, cosφ=0.8)	9.4
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	0.8
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	65-70 dB(A)
Fuel Tank Capacity	15 L
Continuous Working Time	10-12 h
Engine Model	190F
Displacement	438.5 cc
Bore × Stroke	—
Fuel Consumption Rate	395 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	1 L
Dimension (L×W×H)	930 × 530 × 790 mm
Net Weight	150 kg
20FT Loading	72 pcs
40HQ Loading	144 pcs
