Home / Products / CN08GF 7.5 kW Single-Cylinder Open Frame Diesel Generator Set

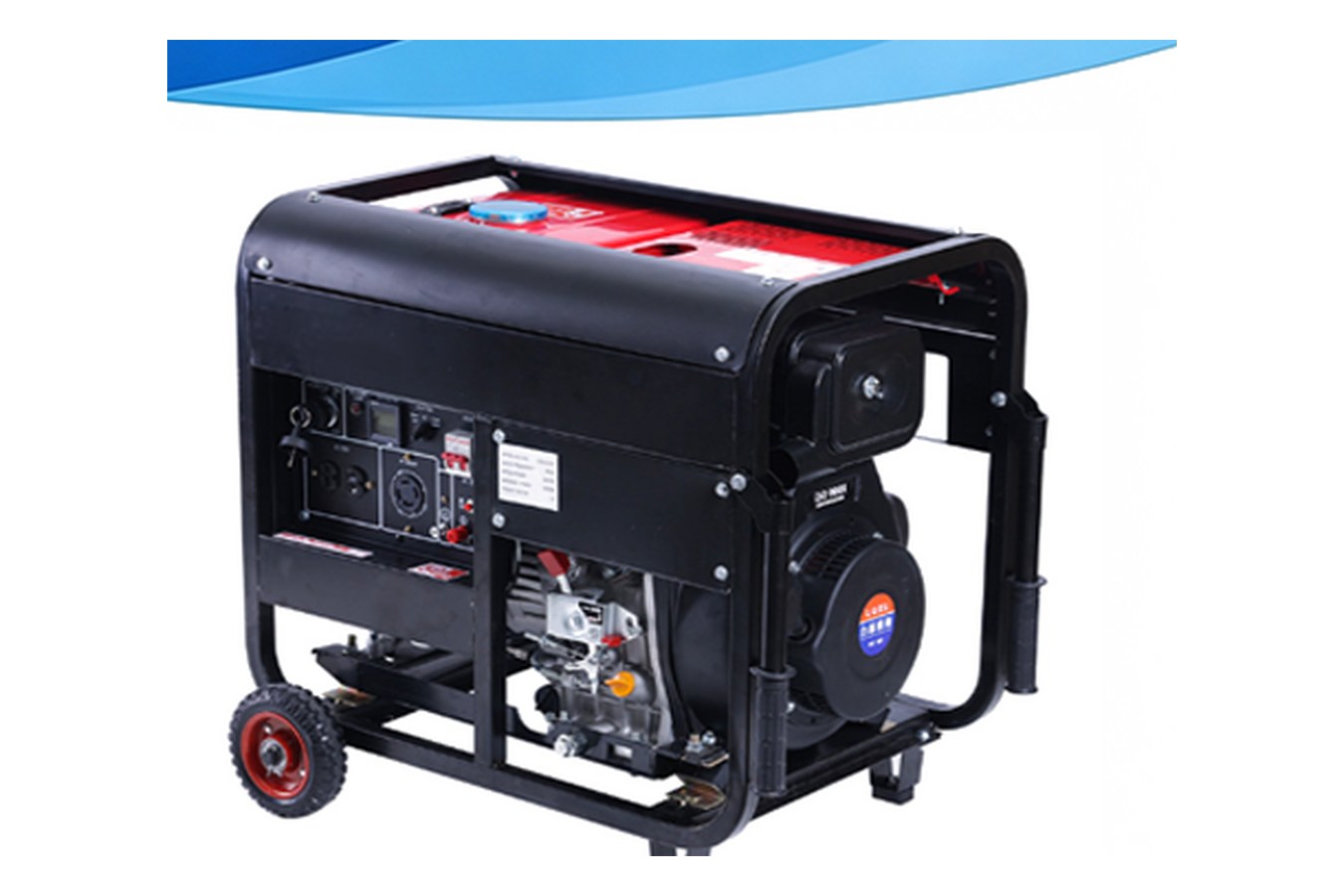

CN08GF 7.5 kW Single-Cylinder Open Frame Diesel Generator Set

Model CN08GF: 7.5 kW (9.4 kVA estimated) open frame diesel generator set with a 192F air-cooled engine, 15 L fuel tank giving about 12 h of continuous running, noise 80-85 dB(A) at 7 metres, net weight 110 kg.

Rated Output 7.5 kW / ≈ 9.4 kVA

Engine Model 192F

Noise Level 80-85 dB(A)

Continuous Running 12 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 192F engine, fuel consumption 295 g/kW·h
Noise level 80-85 dB(A) at 7 metres
15 L fuel tank, about 12 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN08GF
Rated Output Power	7.5
Max Output Power	8
Apparent Power (estimated, cosφ=0.8)	9.4
Rated AC Voltage	110V / 220V / 380V
Frequency	50Hz / 60Hz
Engine Speed	3000 / 3600 rpm
Power Factor	0.8
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	80-85 dB(A)
Fuel Tank Capacity	15 L
Continuous Working Time	12 h
Engine Model	192F
Displacement	490 cc
Bore × Stroke	90 × 75 mm
Fuel Consumption Rate	295 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	1.65 L
Combustion System	Direct injection
Dimension (L×W×H)	760 × 525 × 720 mm
Net Weight	110 kg
20FT Loading	99 pcs
40HQ Loading	198 pcs
