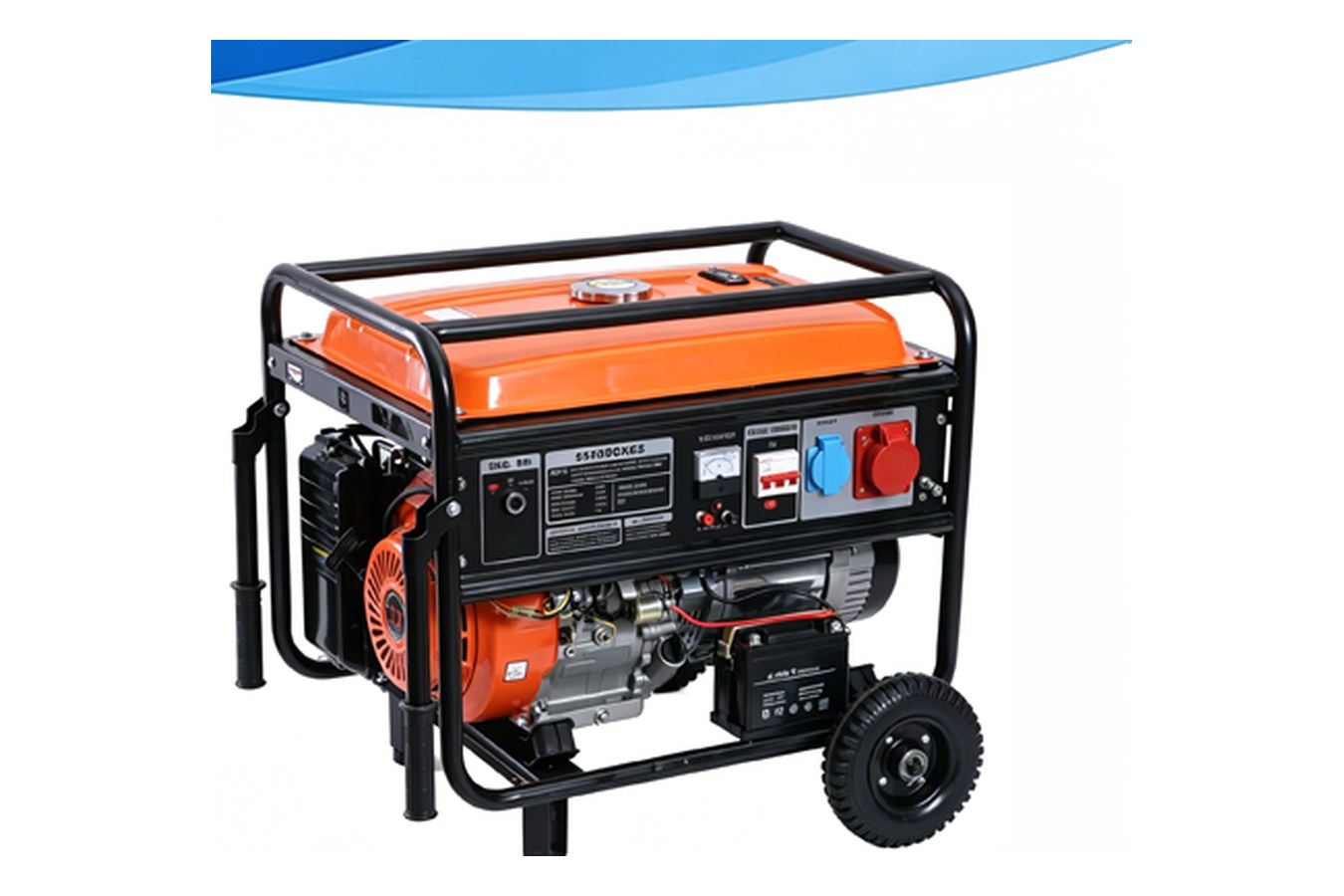

CN10GF 9 kW Open Frame Gasoline Generator Set

Model CN10GF: 9 kW (11.2 kVA estimated) open frame gasoline generator set with a 192F air-cooled engine, 25 L fuel tank giving about 10-12 h of continuous running, noise 70-75 dB(A) at 7 metres, net weight 83 kg.

Rated Output 9 kW / ≈ 11.2 kVA

Engine Model 192F

Noise Level 70-75 dB(A)

Continuous Running 10-12 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 192F petrol engine, 17 hp / 3000 rpm
Noise level 70-75 dB(A) at 7 metres
25 L fuel tank, about 10-12 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN10GF
Rated Output Power	9
Max Output Power	10
Apparent Power (estimated, cosφ=0.8)	11.2
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	0.8
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	70-75 dB(A)
Fuel Tank Capacity	25 L
Continuous Working Time	10-12 h
Engine Model	192F
Displacement	455 cc
Bore × Stroke	—
Fuel Consumption Rate	395 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	1 L
Dimension (L×W×H)	670 × 500 × 540 mm
Net Weight	83 kg
20FT Loading	136 pcs
40HQ Loading	292 pcs
