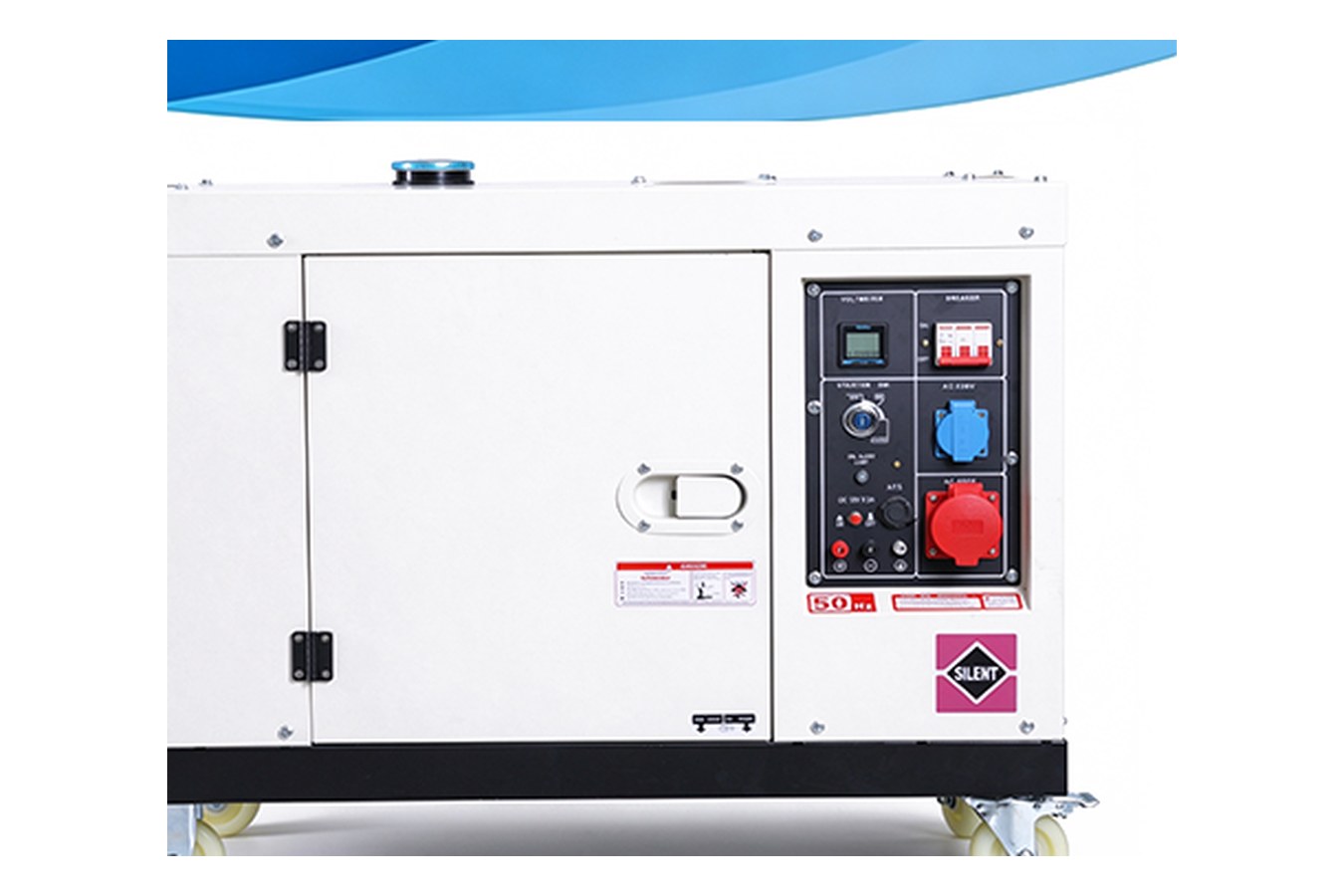

CN11GF 10.5 kW Twin-Cylinder Silent Diesel Generator Set

Model CN11GF: 10.5 kW (13.1 kVA estimated) silent diesel generator set with a 1105F air-cooled engine, 20 L fuel tank giving about 14 h of continuous running, noise 70-75 dB(A) at 7 metres, net weight 220 kg.

Rated Output 10.5 kW / ≈ 13.1 kVA

Engine Model 1105F

Noise Level 70-75 dB(A)

Continuous Running 14 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 1105F engine, fuel consumption 295 g/kW·h
Noise level 70-75 dB(A) at 7 metres
20 L fuel tank, about 14 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN11GF
Rated Output Power	10.5
Max Output Power	11
Apparent Power (estimated, cosφ=0.8)	13.1
Rated AC Voltage	110V / 220V / 380V
Frequency	50Hz / 60Hz
Engine Speed	3000 / 3600 rpm
Power Factor	0.8
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	70-75 dB(A)
Fuel Tank Capacity	20 L
Continuous Working Time	14 h
Engine Model	1105F
Displacement	736 cc
Bore × Stroke	105 × 85 mm
Fuel Consumption Rate	295 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	1.65 L
Combustion System	Direct injection
Dimension (L×W×H)	1120 × 650 × 865 mm
Net Weight	220 kg
20FT Loading	36 pcs
40HQ Loading	108 pcs
