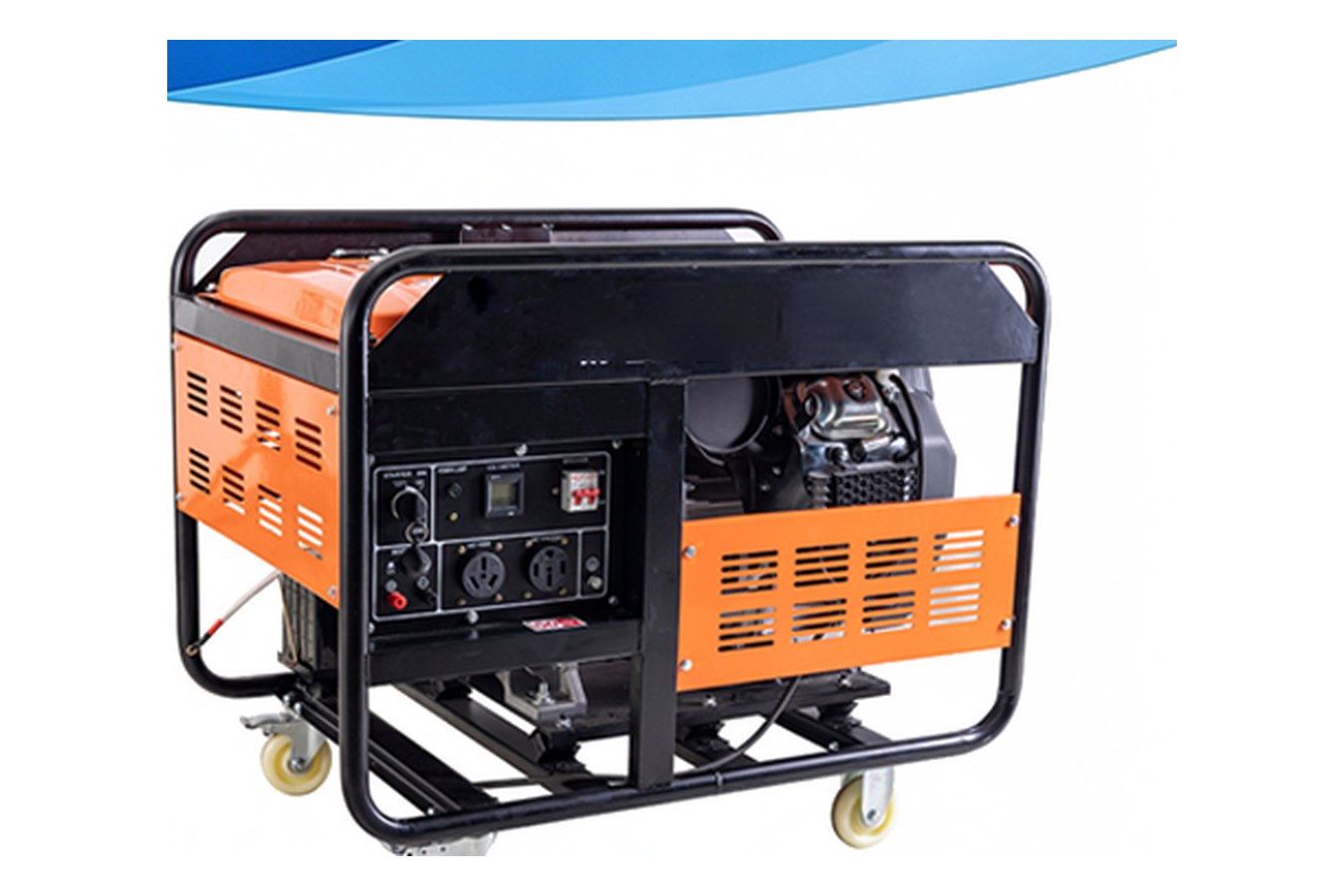

CN11GF 10 kW Twin-Cylinder Gasoline Generator Set

Model CN11GF: 10 kW (12.5 kVA estimated) open frame gasoline generator set with a 2V80F air-cooled engine, 25 L fuel tank giving about 14 h of continuous running, noise 70-75 dB(A) at 7 metres, net weight 180 kg.

Rated Output 10 kW / ≈ 12.5 kVA

Engine Model 2V80F

Noise Level 70-75 dB(A)

Continuous Running 14 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 2V80F petrol engine,
Noise level 70-75 dB(A) at 7 metres
25 L fuel tank, about 14 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN11GF
Rated Output Power	10
Max Output Power	11
Apparent Power (estimated, cosφ=0.8)	12.5
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	1
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	70-75 dB(A)
Fuel Tank Capacity	25 L
Continuous Working Time	14 h
Engine Model	2V80F
Displacement	700 cc
Bore × Stroke	2V80 × 85 mm
Fuel Consumption Rate	395 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	2.0 L
Dimension (L×W×H)	1200 × 685 × 920 mm
Net Weight	180 kg
20FT Loading	24 pcs
40HQ Loading	81 pcs
