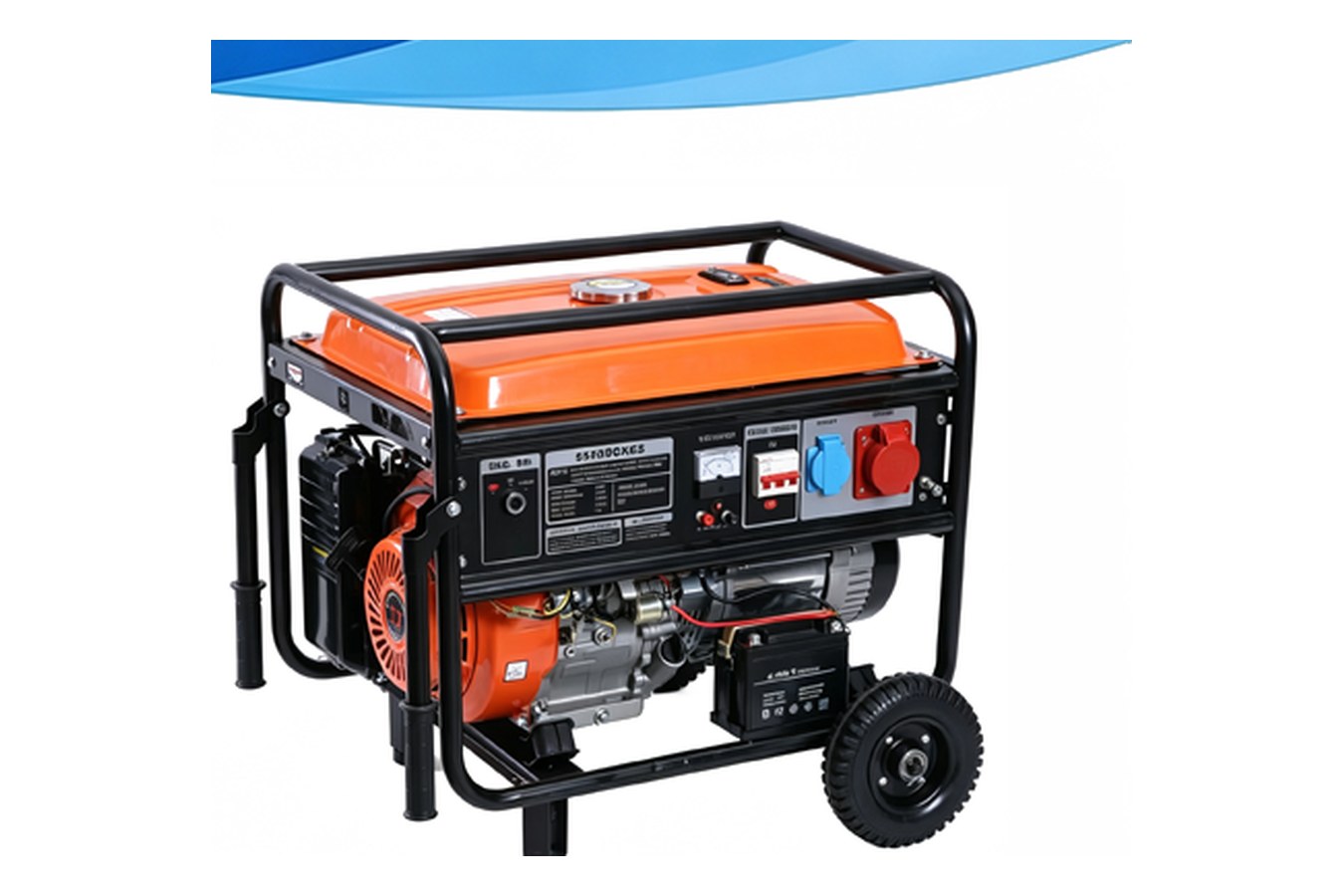

CN11GF 9.5 kW Open Frame Gasoline Generator Set

Model CN11GF: 9.5 kW (11.9 kVA estimated) open frame gasoline generator set with a 195F air-cooled engine, 25 L fuel tank giving about 10-12 h of continuous running, noise 70-75 dB(A) at 7 metres, net weight 88 kg.

Rated Output 9.5 kW / ≈ 11.9 kVA

Engine Model 195F

Noise Level 70-75 dB(A)

Continuous Running 10-12 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 195F petrol engine, 20 hp / 3000 rpm
Noise level 70-75 dB(A) at 7 metres
25 L fuel tank, about 10-12 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN11GF
Rated Output Power	9.5
Max Output Power	10.5
Apparent Power (estimated, cosφ=0.8)	11.9
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	0.8
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	70-75 dB(A)
Fuel Tank Capacity	25 L
Continuous Working Time	10-12 h
Engine Model	195F
Displacement	480 cc
Bore × Stroke	—
Fuel Consumption Rate	395 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	1 L
Dimension (L×W×H)	670 × 500 × 540 mm
Net Weight	88 kg
20FT Loading	136 pcs
40HQ Loading	292 pcs
