Home / Products / CN13GF 12 kW Twin-Cylinder Silent Diesel Generator Set

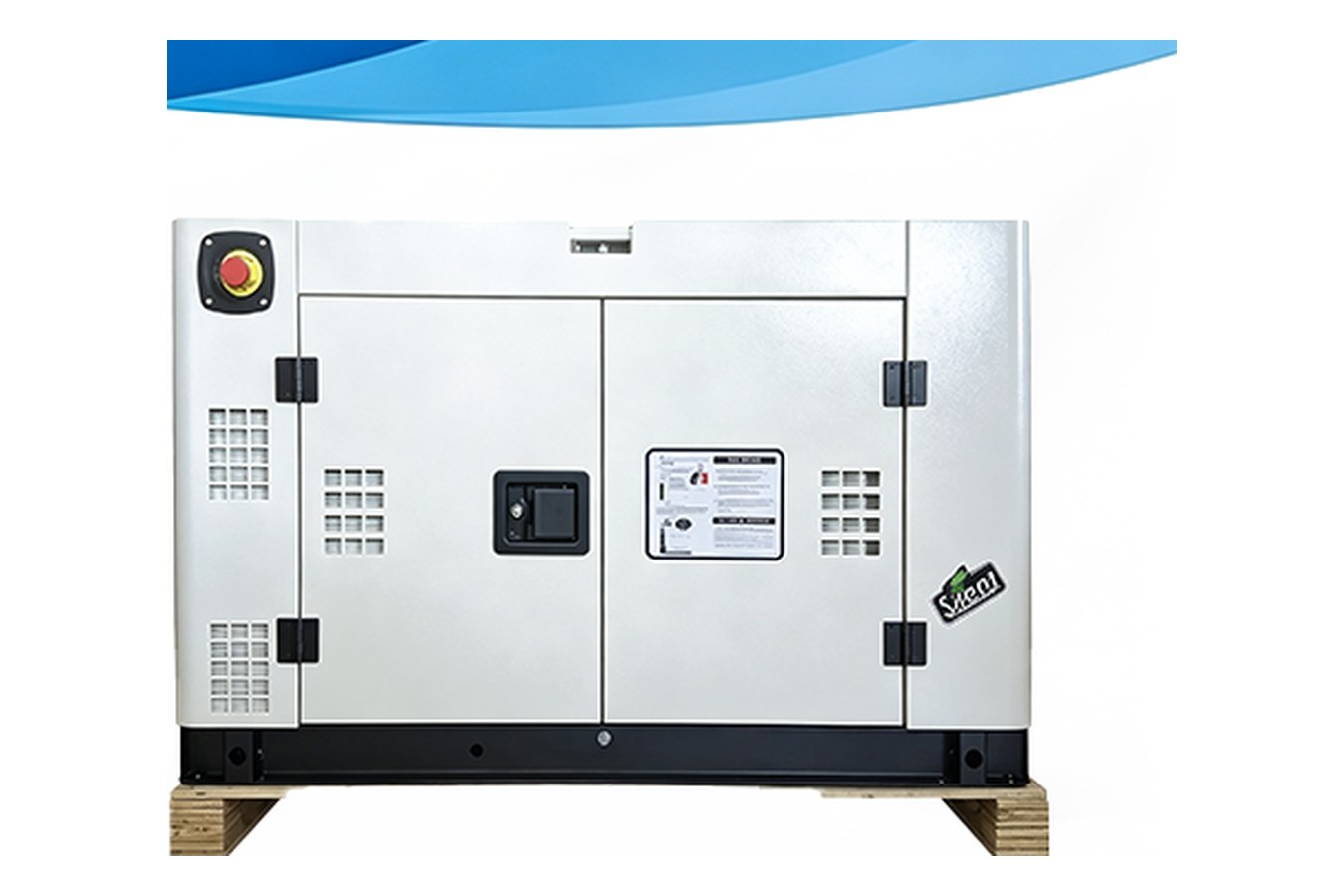

CN13GF 12 kW Twin-Cylinder Silent Diesel Generator Set

Model CN13GF: 12 kW (15.0 kVA estimated) silent diesel generator set with a 2V88F air-cooled engine, 25 L fuel tank giving about 14 h of continuous running, noise 70-75 dB(A) at 7 metres, net weight 275 kg.

Rated Output 12 kW / ≈ 15.0 kVA

Engine Model 2V88F

Noise Level 70-75 dB(A)

Continuous Running 14 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 2V88F engine, fuel consumption 295 g/kW·h
Noise level 70-75 dB(A) at 7 metres
25 L fuel tank, about 14 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN13GF
Rated Output Power	12
Max Output Power	13
Apparent Power (estimated, cosφ=0.8)	15.0
Rated AC Voltage	110V / 220V / 380V
Frequency	50Hz / 60Hz
Engine Speed	3000 / 3600 rpm
Power Factor	0.8
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	70-75 dB(A)
Fuel Tank Capacity	25 L
Continuous Working Time	14 h
Engine Model	2V88F
Displacement	797 cc
Bore × Stroke	2V88 × 85 mm
Fuel Consumption Rate	295 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	1.65 L
Combustion System	Direct injection
Dimension (L×W×H)	1330 × 685 × 920 mm
Net Weight	275 kg
20FT Loading	24 pcs
40HQ Loading	81 pcs
