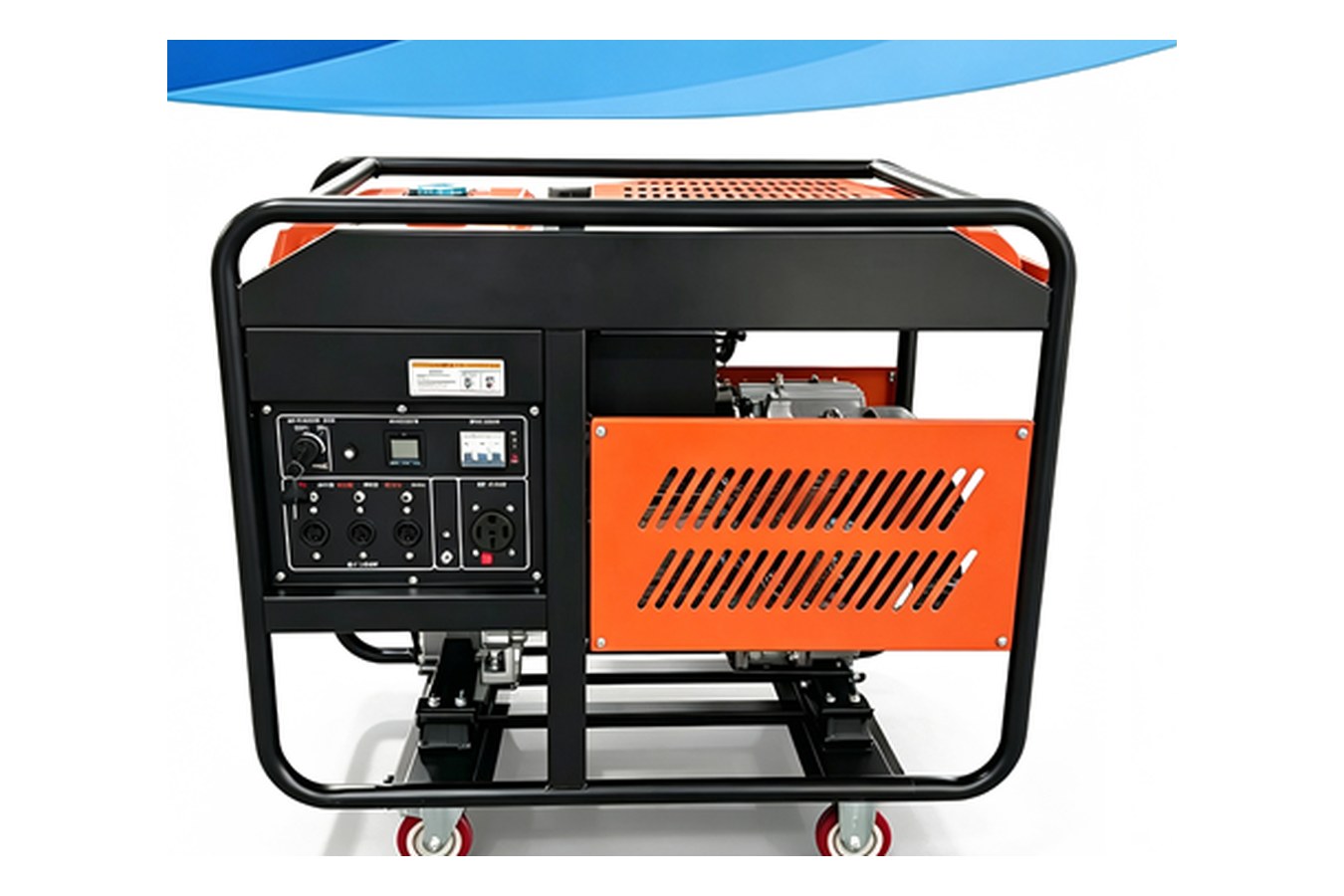

CN16GF 15 kW Twin-Cylinder Gasoline Generator Set

Model CN16GF: 15 kW (18.8 kVA estimated) open frame gasoline generator set with a 2V92F air-cooled engine, 25 L fuel tank giving about 14 h of continuous running, noise 70-75 dB(A) at 7 metres, net weight 200 kg.

Rated Output 15 kW / ≈ 18.8 kVA

Engine Model 2V92F

Noise Level 70-75 dB(A)

Continuous Running 14 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Stable output with AVR automatic voltage regulation
Air-cooled 2V92F petrol engine,
Noise level 70-75 dB(A) at 7 metres
25 L fuel tank, about 14 h of continuous running
Compact structure, easy maintenance and spare parts supply
Factory direct price, export packing available

Technical Specification

Model Number	CN16GF
Rated Output Power	15
Max Output Power	16
Apparent Power (estimated, cosφ=0.8)	18.8
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	1
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	70-75 dB(A)
Fuel Tank Capacity	25 L
Continuous Working Time	14 h
Engine Model	2V92F
Displacement	997 cc
Bore × Stroke	2V92 × 85 mm
Fuel Consumption Rate	395 g/kW·h
Fuel Type	0# or -10# light diesel oil
Lubrication Oil Volume	3.2 L
Dimension (L×W×H)	1200 × 685 × 920 mm
Net Weight	200 kg
20FT Loading	24 pcs
40HQ Loading	81 pcs
