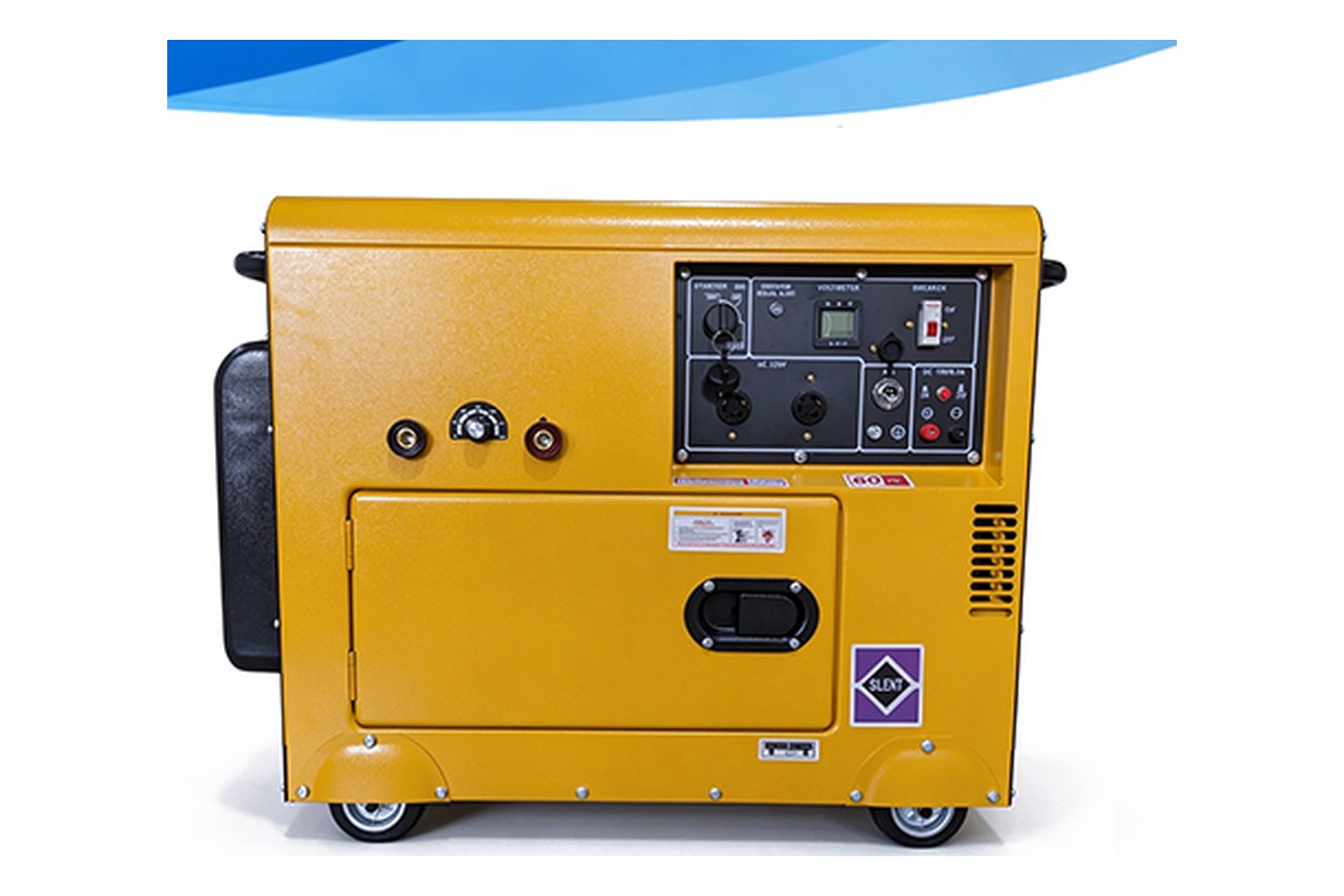

DH180A 5 kW Diesel Welding Generator Set

DH180A welding generator set with 180 A welding current and 5 kW auxiliary AC output. Powered by the 188F air-cooled diesel engine in a silent canopy.

Rated Output 5 kW / ≈ 6.2 kVA

Engine Model 188F

Noise Level 70-75 dB(A)

Continuous Running 14 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Welding current 180 A, adjustable 26-180 A
Suitable welding rod diameter 2.0-2.5 mm, no-load voltage 65 V
100 %% duty cycle for continuous welding work
Auxiliary AC output 5 kW / 5.5 kW max for tools and lighting
Air-cooled 188F diesel engine, 15 L fuel tank, about 14 h running
Silent and open frame versions both available

Technical Specification

Model Number	DH180A
Rated Output Power	5
Max Output Power	5.5
Apparent Power (estimated, cosφ=0.8)	6.2
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	1
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	70-75 dB(A)
Fuel Tank Capacity	15 L
Continuous Working Time	14 h
Engine Model	188F
Displacement	418 cc
Bore × Stroke	88 × 72 mm
Fuel Consumption Rate	295 g/kW·h
Lubrication Oil Volume	1.65 L
Combustion System	Direct injection
Dimension (L×W×H)	940 × 540 × 800 mm
Net Weight	140 kg
20FT Loading	72 pcs
40HQ Loading	144 pcs
