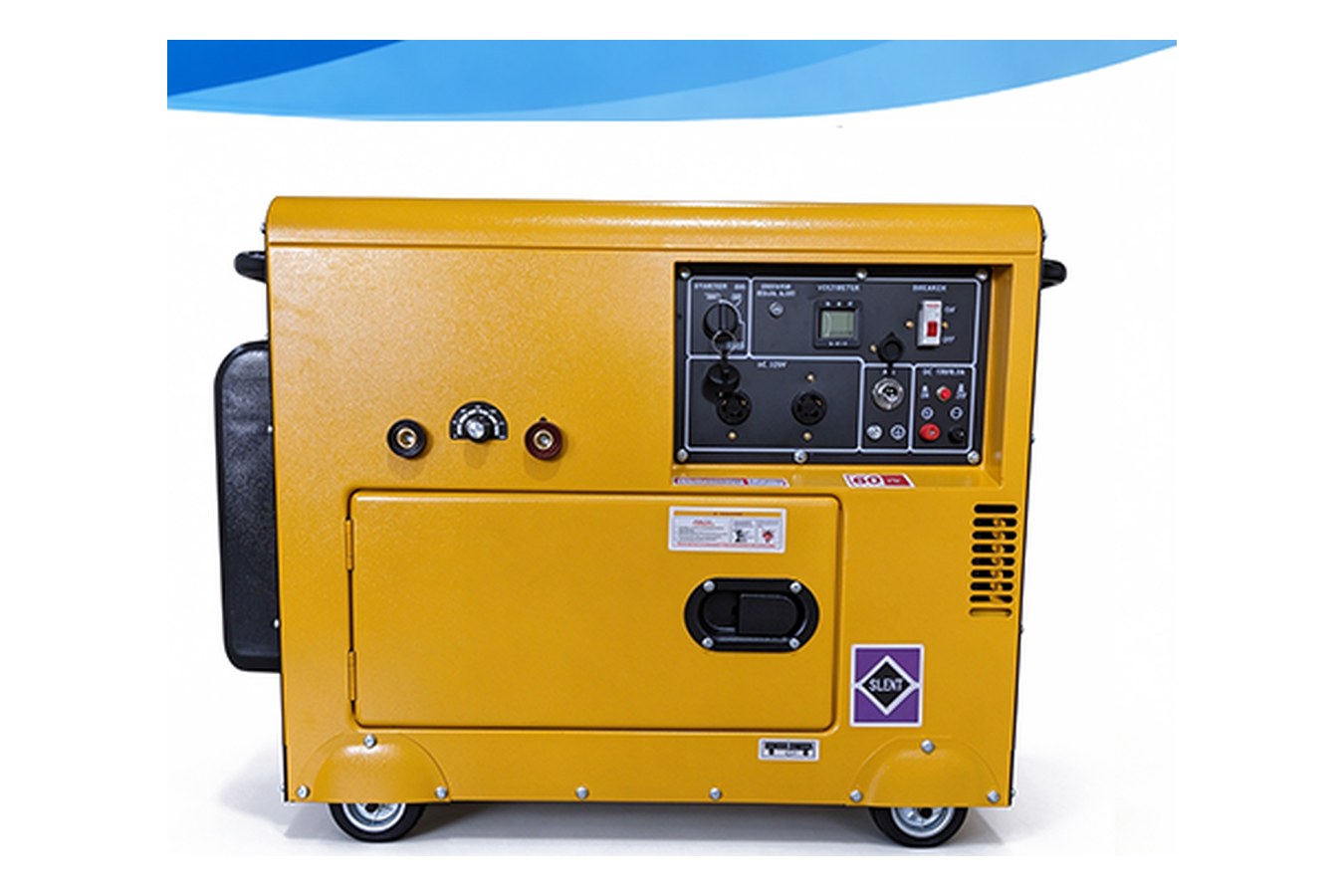

DH200A 6 kW Diesel Welding Generator Set

DH200A welding generator set with 200 A welding current and 6 kW auxiliary AC output. Powered by the 190F air-cooled diesel engine in a silent canopy.

Rated Output 6 kW / ≈ 7.5 kVA

Engine Model 190F

Noise Level 70-75 dB(A)

Continuous Running 13 h

WhatsApp Inquiry Email Inquiry Send Form

Main Features

Welding current 200 A, adjustable 26-200 A
Suitable welding rod diameter 2.0-3.5 mm, no-load voltage 65 V
100 %% duty cycle for continuous welding work
Auxiliary AC output 6 kW / 6.5 kW max for tools and lighting
Air-cooled 190F diesel engine, 15 L fuel tank, about 13 h running
Silent and open frame versions both available

Technical Specification

Model Number	DH200A
Rated Output Power	6
Max Output Power	6.5
Apparent Power (estimated, cosφ=0.8)	7.5
Rated AC Voltage	220V
Frequency	50Hz
Engine Speed	3000 rpm
Power Factor	1
DC Output	12V / 8.3A
Starting System	Electric start
Noise Level (7m)	70-75 dB(A)
Fuel Tank Capacity	15 L
Continuous Working Time	13 h
Engine Model	190F
Displacement	456 cc
Bore × Stroke	90 × 75 mm
Fuel Consumption Rate	295 g/kW·h
Lubrication Oil Volume	1.65 L
Combustion System	Direct injection
Dimension (L×W×H)	940 × 540 × 800 mm
Net Weight	145 kg
20FT Loading	72 pcs
40HQ Loading	144 pcs
